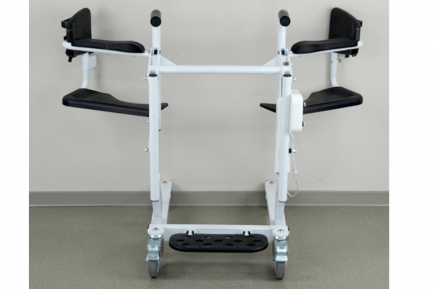

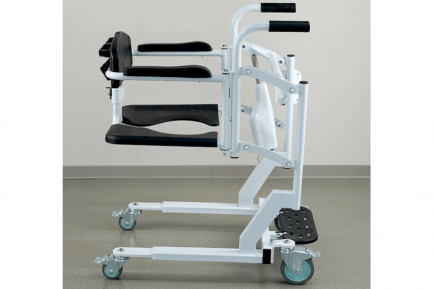

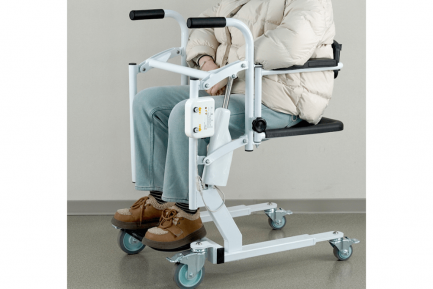

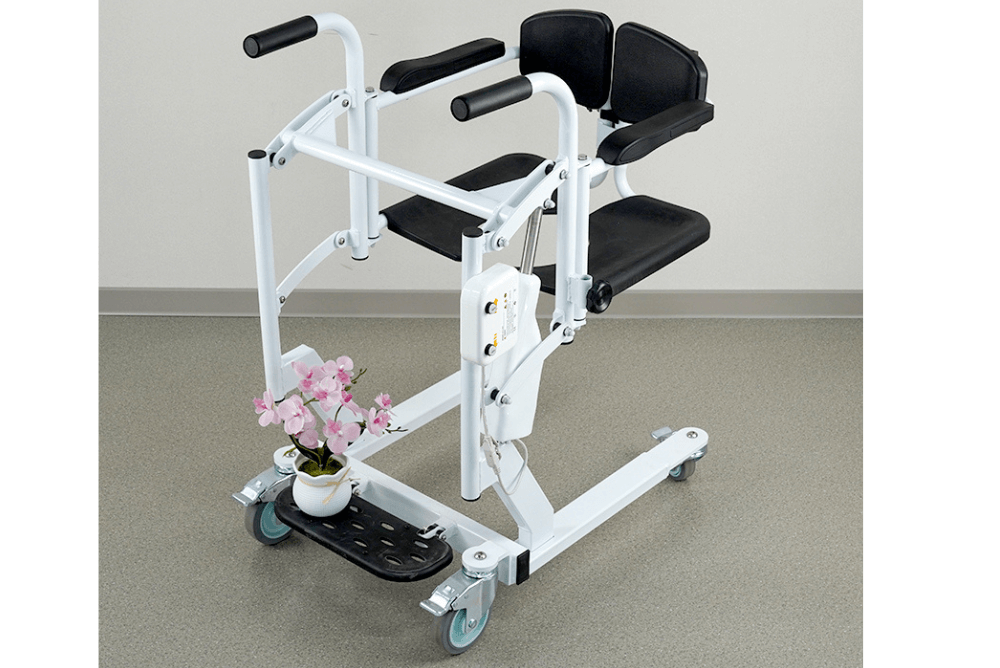

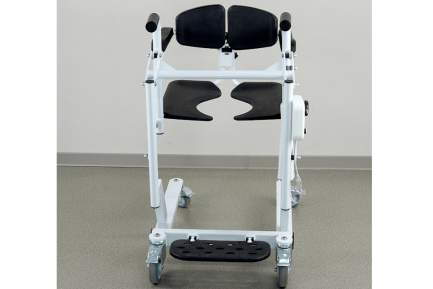

Electric Patient Transfer Lift WY-207

Description

I. Product Structure

Comprises bracket, wheels, base outriggers, suspension rods, controller assembly and armrests. Some motorized models have a battery assembly.

1. Intended Use

For transporting and moving patients.

III. Usage

1.With the patient seated at the bedside, lower the transfer machine’s seat plate to bed – level, unfold it 180 degrees, move the machine to the bedside and lock the front – wheel brakes.

2.Lift the patient slightly and rotate the seat plate under one hip, then do the same for the other side. Move the two seat plates together, lock them with the locking device and fasten the safety belt buckle.

3.Once the seat plate locking device and safety belt are locked, press the upward button on the battery box. Stop when the seat plate is above the bed and can be detached.

4.Unlock the front – wheel brakes and move the transfer machine away from the bedside to complete the transfer.

1. Precautions

1.Keep parts like the backrest pad, seat and armrest pads away from fire and heat sources.

2.Don’t touch the hot motor and controller bottom during continuous operation to avoid burns.

3.Prevent electrical short – circuits.

4.Battery Maintenance

4.1 Dispose of damaged or leaking batteries properly according to environmental protection requirements.

4.2 Use only the same or recommended battery types when replacing, ensuring correct polarity.

4.3 Incorrect disposal of waste batteries can cause fire or explosion. Don’t disassemble, heat or incinerate them.

5.Clean weekly during patient use; disinfect after use for infectious patients.

6. Before use, adjust the electric transfer lift to a height suitable for the patient.
7. Check that the casters of the electric transfer lift are securely fastened and stable before use. Replace them immediately if worn, and exercise extra caution when using on sloped or slippery surfaces.
8. The electric transfer lift is an auxiliary tool designed for transporting and moving patients. Do not use it to support objects other than its intended purpose.
9. The weight of the patient being transported shall not exceed 120 kg.
10. Transportation

During transportation, it should be protected from moisture, shielded from sunlight, and kept away from heat sources.

VI. Storage

The packaged electric transfer lift should be stored indoors in a well – ventilated, dry, cool place, away from heat sources and free from corrosive gases.
