Stair Climbing Power Wheelchair WY-236

Description

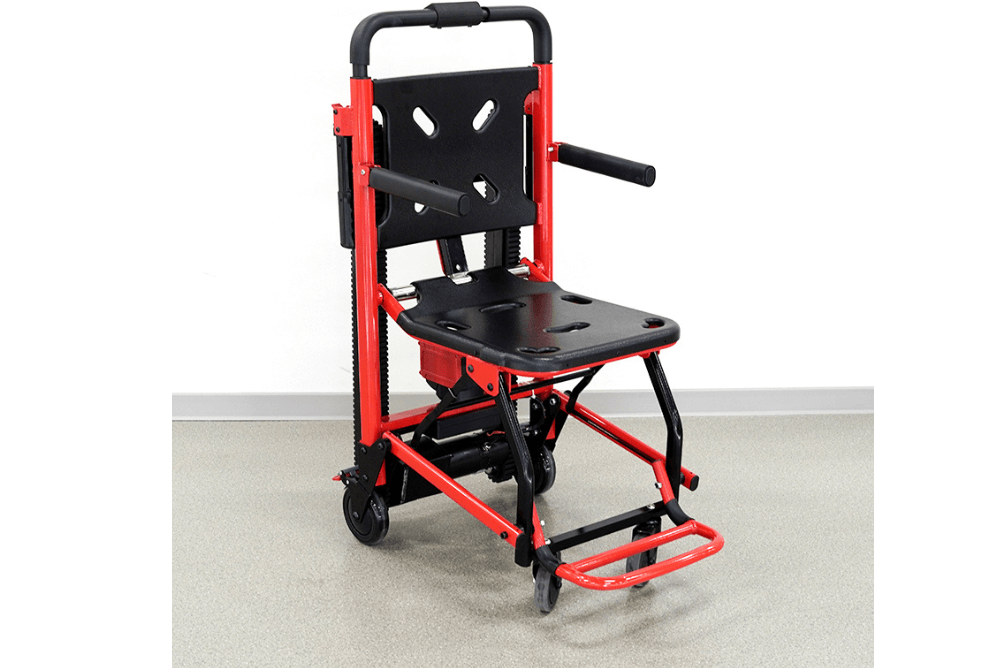

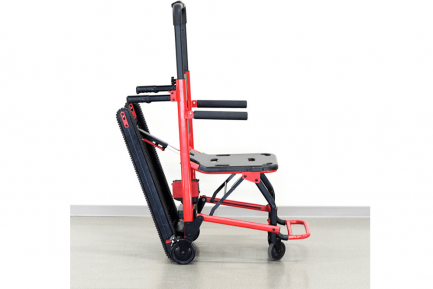

Electric climbing wheelchair, mainly used in high-rise buildings up and down the stairs to transport patients, unique crawler structure, transport patients stable and safe; This stair climbing wheelchair is equipped with 4 wheels, easy to move on the ground; The body of the wheelchair is made of high-strength aluminum alloy material, which is strong and durable.

● 11B wheelchair lever adjustment range 450mm

● The size of the 11B wheelchair stair turntable is 900mm x 900mm

● The maximum Angle of stairs should be ≤ 35°

●11B wheelchair climbing speed 0.17m/s

● The effective power supply time of lithium battery is not less than 1.3h.

● The maximum load is 180kg.

● When unloaded, the total weight should not be greater than 30kg.

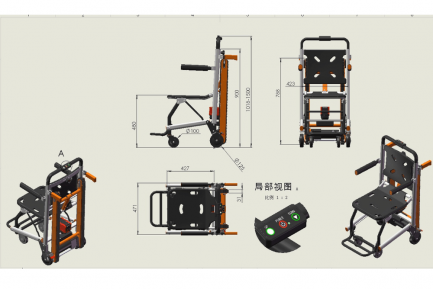

● The outer dimensions of the 11B wheelchair (L x W x H, mm) are 1040 x 520 x 1750, ±30 mm.

Main structural composition

The product is mainly composed of a starting switch, retractable pole, battery, controller, track, cushion, backrest, motor, wheels, straps and armrests. The wheelchair is made of high-strength aluminum alloy.

Warranty: One year service warranty on motors
