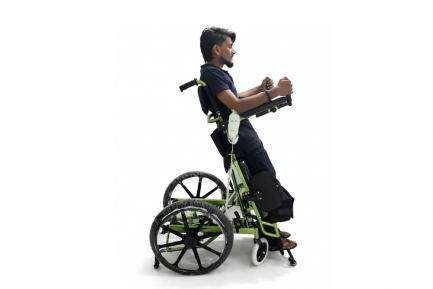

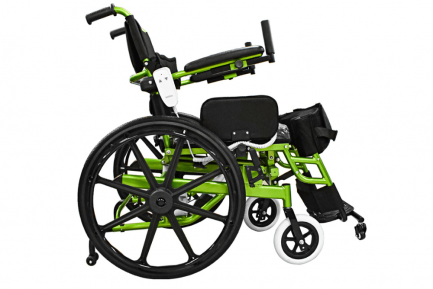

Semi Automatic Standing Wheelchair GS129
₹ 64,000.00
- Description
- Reviews (0)
- Questions & Answers
Description
1. General description:
This product is the Manual wheelchair with electric verticalizer, which produced accordingtothetechnical requirements of medical device products.
2.Product performance:
Material: Powder coating steel chair frame.
Flip-up armrest.
Comfortable safety largest belt.
Electric control stand up.
Manual control the movement.
3. Product parameters:
Total width: 65cm
Seat width: 46cm
Rear wheel diameter: 60cm
Front wheel diameter: 20cm
Seat height: 58cm
Total height: 104-138cm
4 Structure and composition:
This product is mainly composed of frame assembly, armrest assembly, front andrear wheelassembly, brake assembly, seat cushion, foot pedal etc.
5.Scope of application:
This product is an important tool for rehabilitation. It is not only a means of transportation for physically
handicapped and people with reduced mobility, but more importantly, it enables them to exercise and participateinsocial activities with the help of wheelchairs.
6.Installation
6.1. Installation
Correct installation method

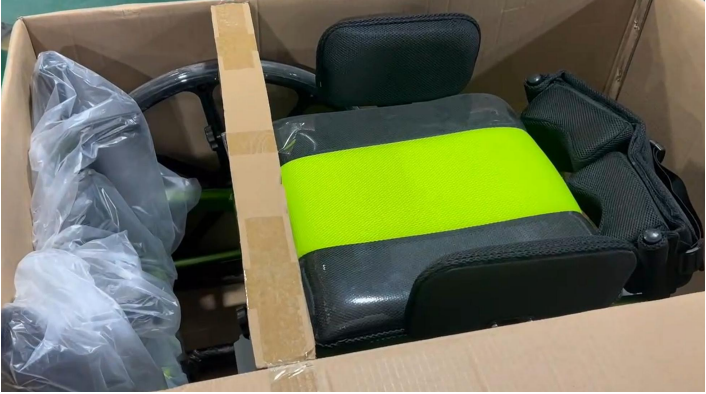

6.1.1 Open the packaging, take out the wheelchair backrest and wheelchair frame.

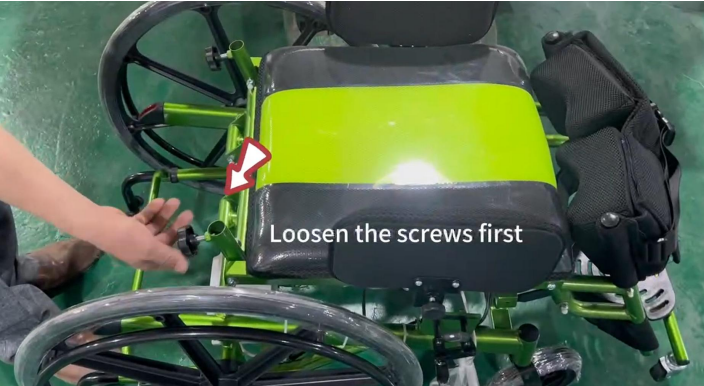

6.1.2 Loosen the backrest tube screws first

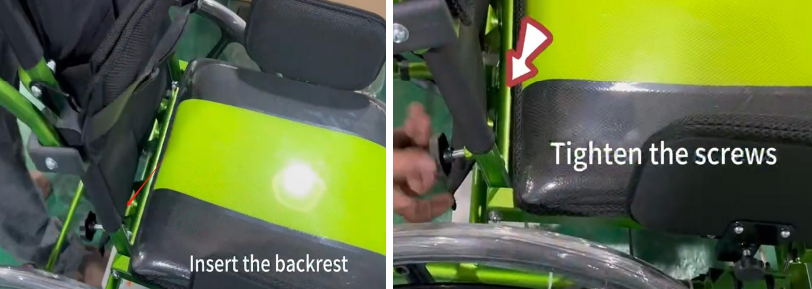

6.1.3 Insert the backrest and tighten the screws.

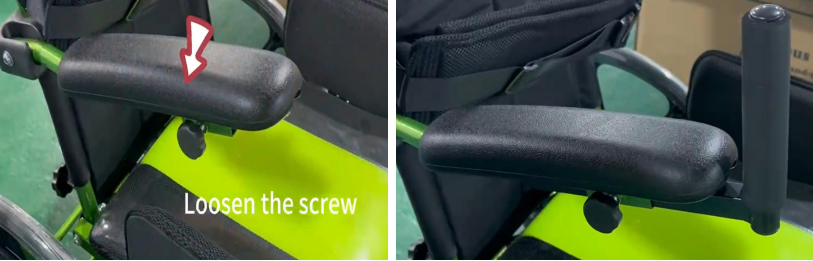

6.1.4 Loosen the screw first, then insert the handle and tighten the screws.

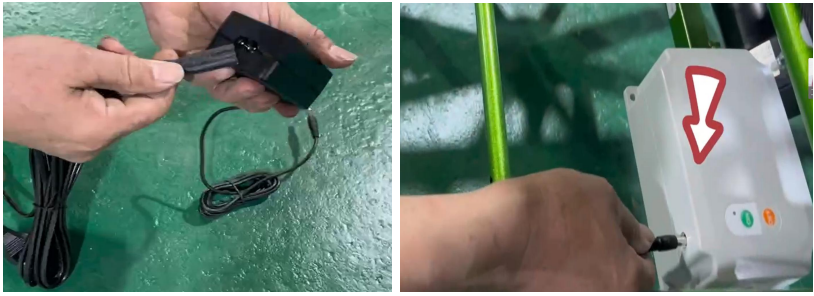

6.1.4 This is the changer, when using, need to connect the Power cord and control box
