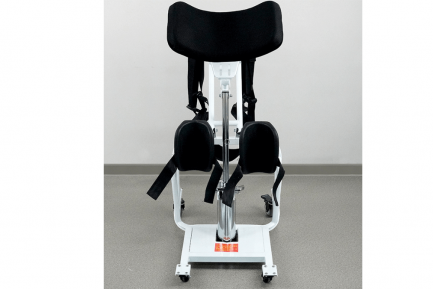

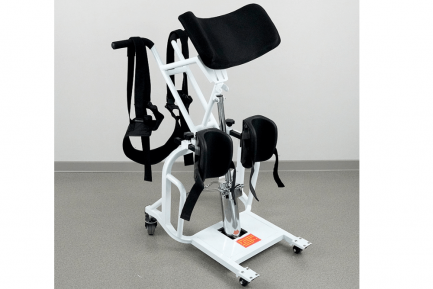

Patient Lift & Transfer Machine WY-2081

Description

1.Usage method
1. Firstly, push the transfer machine forward to a suitable distance from the patient, press
the brake, and place the patient’s Legs on the transfer machine. Insert the front Legs of the
displacement machine as much as possible under the seat, wheelchair, etc

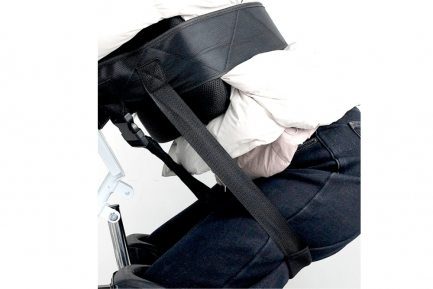

2. Put the scat belt over the patient, making sure it passe through the armpit, and then tie
the seat belt around the patient’s waist. Patients with arm mobility can naturally lie on the
chest protector in front and grab onto the support with both hands.
3.Fix the patient’s legs on two knew pads, making sure they are securely fastened.
4. Tighten the seat belt to ensure that the patient is fully sccurcd to the transfer machine,
and use maximum force to fully secure the patient to the transfer machine.

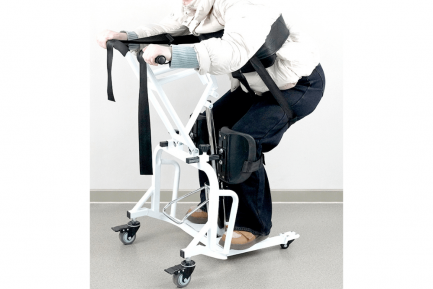

5. Place both hands on the armrest in front and lightly step on the crane below. Be sure to
gently step on it and feel the air being pumped into the crane. Do not step on it to the
bottom, as it will release air and cannot lift the patient.

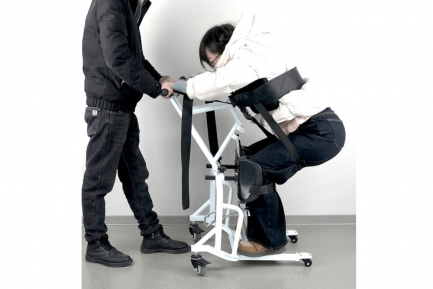

6. Release the brake below and push the patient to the desired location (such as the toilet,
bed, etc.).Then step on the crane to the bottom, release the air from the crane, and the
patient will slowly be lowered, and then release the seat belt.

2.Precautions:
Special precautions:
1.After receiving the goods, the nursing staff should practice multiple times in a patient free
state to master the product performance  before transferring the patient.
2.Special attention: Do not step on the crane below when the safety belt is not tightened
and not prepared when the devices leaning towards the patient the seat belt and tie the patient to the transfer machine as much as possible

4. The lifting range shall be based on actual needs and the patient’s acceptable level. People
with short stature should not have a large amplitude to avoid lifting their feet off the
ground.
5. Before lifting the patient, make sure that their legs are completely clamped on the knee
pads,otherwise lifting is strictly prohibited!
6. Every time lifting, pay attention to the direction of the seat belt insertion, try pulling it
hard,reverse insertion without locking force may cause the human body to fall off.
